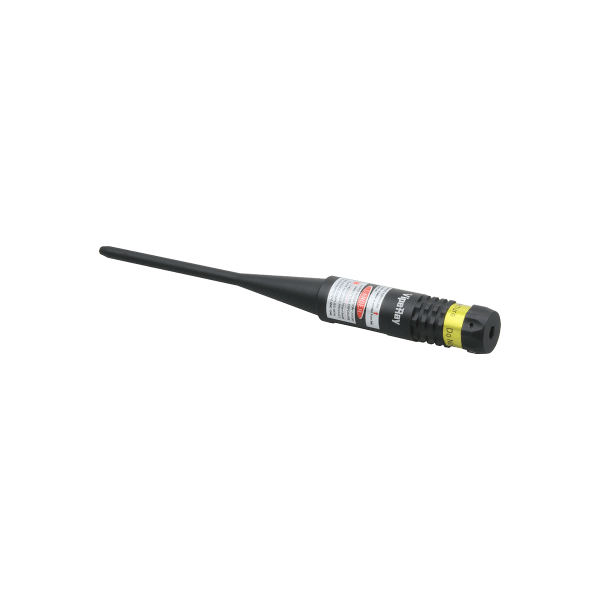

VipeRay Red Laser Bore Sight SKU: LBC01


$24.90 (Inc VAT)


Please Register/Login to see the wholesale prices

Quantity Discounts
  USA China
10+ $12.30 $12.30
Product Total: 24.9


· Power: <5mW

· Wavelength: 532nM

· Length: 138mm

· Weight (net): 30g (1.1 Oz)

· Head Dia.:15.5mm

· Tail Dia.:4.4mm

· Material: T6061 High-class aluminum alloy

· Finish: Black matte

· Battery Type: LR44

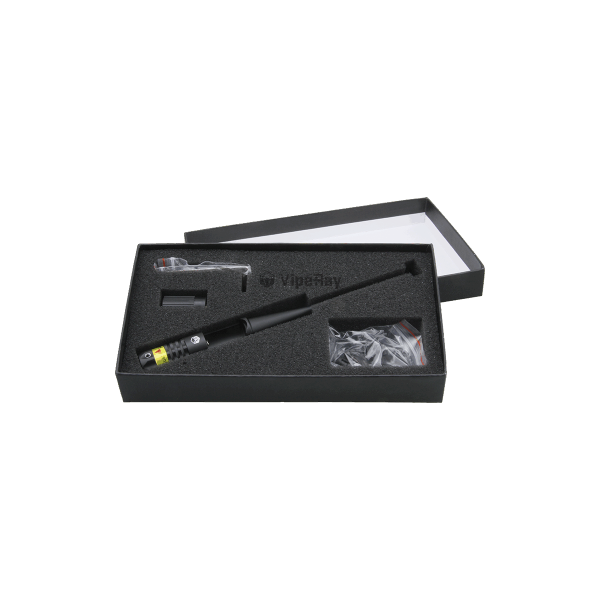

· Package:

  • Instruction
  • Laser bore sight
  • Four adjustable adapters
  • Screws and hex key

· Four bore adjustable adapters to fit all 0.22-0.5 caliber

· Screws already are set in the factory when center aligning


  • Cost-effective red laser bore sight, shows exactly where you’re aiming.
  • By project a laser beam from the center of the barrel axis of fire arms, this laser bore sight collimator allows you to instantly & accurately set your sight or scope etc.
  • The laser light emitted from the laser bore tool travels in a straight line while the bullet follows a trajectory.
  • Even though the use of this device will get you very close, the final adjustment should be made at the range.

VipeRay Red Laser Bore Sighter Family

Various red & green laser bore sighter kit to choose from. Made of brass, More than 15 types now, covering 12 GA, 223 Rem, 308 WIN, 7.62x39mm, 8mm, 30-06, 300 WIN, 7.62x54mm, 20 GA, 9mm, 9.3x62mm, 6.5x55mm, .40 S&W and More.

Welcome to our retail store:


Wholesale Service at Victoptics

Contact us to get a quote for this adjustable red laser bore sighter kit. We offer Bulk Discounts for wholesalers!

For more information related to warranty, repair, shipping, return and instruction manuals, pls visit:

How to use red laser bore sighter?

  1. Make sure the firearm is unloaded and safe to use.
  2. Load battery and turn on the red laser bore sighter.
  3. Place the bore sighter in the chamber of the firearm, making sure it fits snugly. (If the bore sighter slides in the chamber, you should use the proper adjustable caliber adapter until it’s snug).
  4. Close the action of the firearm and adjust the bore sighter so that the red laser is pointing at a specific target
  5. Look through the scope or iron sights of the firearm and adjust them until the crosshairs or sights are aligned with the red laser dot
  6. Once the sights are aligned, remove the bore sighter and test fire the firearm to make sure it is on target.

Note: Always follow proper safety procedures when handling firearms, including keeping your finger off the trigger and wearing eye and ear protection.
