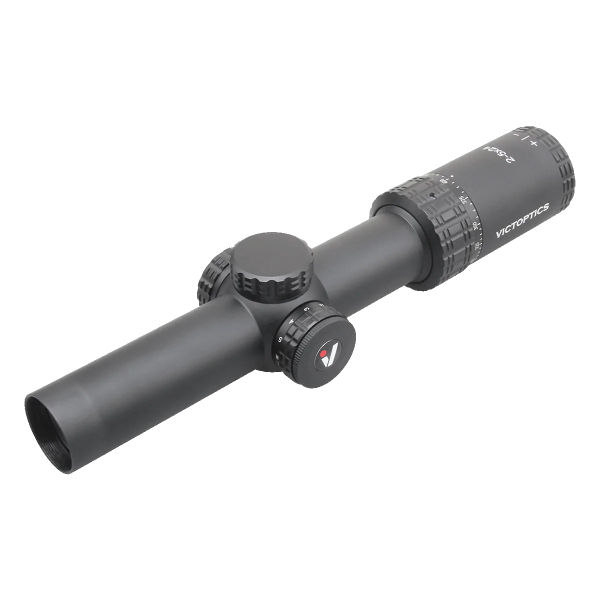

SCB 2-5X24 CROSSBOW SCOPE SKU: OPSL30

SKU: OPSL30

$129.00 (Inc VAT)

Clear
QTY:

Please Register/Login to see the wholesale prices

Quantity Discounts
  China USA
10-29 $49.00 $49.00
30-99 $46.50 $46.50
Product Total: 129.00

Reticle

Specification

·Magnification: 2-5x

·Objective Lens Dia: 24mm

·Ocular Lens Dia: 36mm / 1.4 inch

·Ocular Lens Length: 60mm / 2.4 inch

·Exit Pupil: 10.7-4.8mm

·Optics Coating: Fully multi coated

·Field of View: 63.7-25.5 feet@ 100 yards

·Eye Relief: 96mm / 3.8in

·Length: 248mm / 9.8in

·Weight: 380g / 13.4oz

·Tube Dia: 30mm

·Click Value: 1/2MOA

·Adjustment Range: >60MOA

·Parallax Setting: 30 yards

·Reticle: Etched glass VCB-CDO

·Illumination: 5 levels red & green

·Battery Type: CR2032

·Finish: Black matte

·Shock tested to 750g, water resistant IPX4

·Fully nitrogen purged to eliminate any fogging of the lenses internally

·Capped adjustment with zero re-set feature

·High quality 6061 T6 aircraft grade aluminum

·Diopter compensation from fast-focus eyepiece (+2 to -2)

·Including items: power ring lever mount, 30mm weaver low rings (default) or dovetail rings, flip-up caps and cleaning cloth etc.

Features

Edge-to-Edge Image without Inside Dark Ring Around Image, 3.8in Long Eye Relief

30mm Monotube Made of 6061 T6, 1/2 MOA Capped Adjustment, Power Lever Mount

Fully-multi Coated, Wide Field of View, Red & Green Illumination, with Flip-up Caps

Etched Glass Illuminated BDC Crossbow Reticle w/ Digital Lines & Dots, 300-475 FPS

Introduction Video of VictOptics Crossbow Scope

Edge-to-Edge

Edge-to-Edge image,  high quality lenses composition which are all fully multi-coated for maximum sharpness. Wide field of view, without inside dark ring around image.

Victoptics S6 1-6X24 image
VICTOPTICS SCB 2-5X24 CROSSBOW SCOPE ODM

1/2 MOA Click Value

1/2 MOA Capped Adjustment, with windage and elevation adjustment range >60MOA.

With zero re-set feature to help you achieve faster and more precise targeting.

W/ Power Ring Lever

The magnification ring can be quickly adjusted with the power ring lever. You can detach it anytime if you prefer to do so.

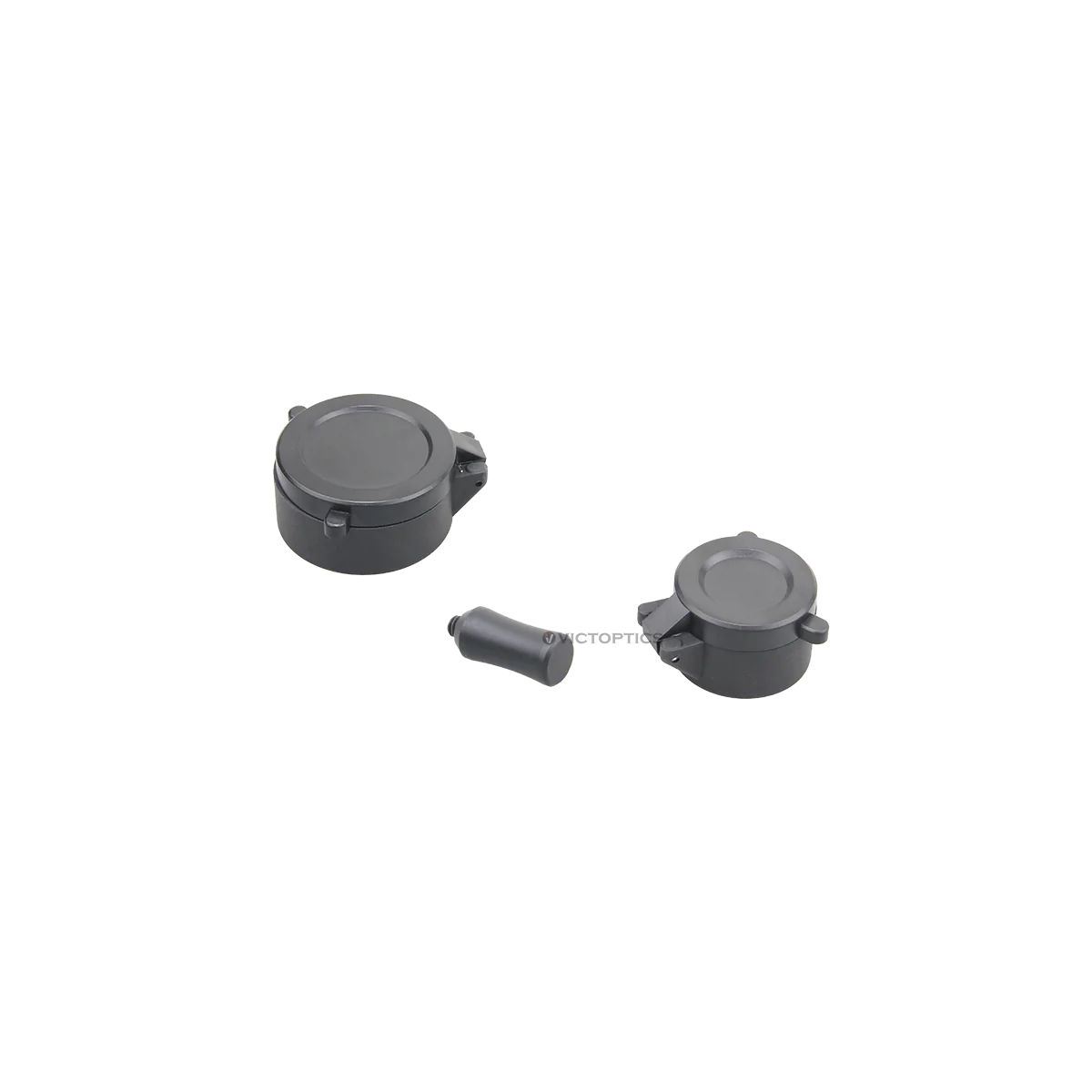

The protective flip caps makes this rifle scope resist many scratches and dust. You will never have to worry about damaging it during transport.

VICTOPTICS SCB 2-5X24 CROSSBOW SCOPE OEM
VICTOPTICS SCB 2-5X24 CROSSBOW SCOPE SUPPLIER

Illuminated BDC Crossbow Reticle

The Etched Glass Illuminated BDC Crossbow Reticle helps to compensate for the hop-up effect at different distances as well as to compensate for windage, while those digital lines & dots help you better estimate the distance. And the reticle can be adjusted in both Red & Green for 5 brightness settings.

Long Eye Relief

96mm (3.8 inches) long eye relief rifle scope, gives more safety from heavy recoil fire arms and enables fast target acquisition.

Long eye relief rifle scope

More Info

What is a BDC reticle on a scope?

BDC reticle is the bullet drop compensator crosshairs, it helps to compensate for the hop-up effect and windage at different distances. If you zeroed your rifle at 100 yards, then you can predict how much a bullet will drop at 200 yds, 300 yds… However, the calculated trajectory is depended on the bullet type, so you will also need a ballistic calculator of the bullets you use.
