S10 1-10x24i LPVO Fiber SFP Rifle Scope w/ 1-Piece Extreme High Picatinny AR Mount Kit (SKU: OPSL139)
SKU: OPSL139(Inc VAT)
Buy at U.S. Online Store
Buy at European Online Store
Buy at Global Online Store
Icon Features
Second Focal Plane
Edge-to-Edge crystal image
FMC optic coating tech
5 settings red & green
Free Flip-Up Protection Caps
True 1x Power
Pull to adjust, press to lock
Fiber Optic Reticle
Visible in Harsh Light

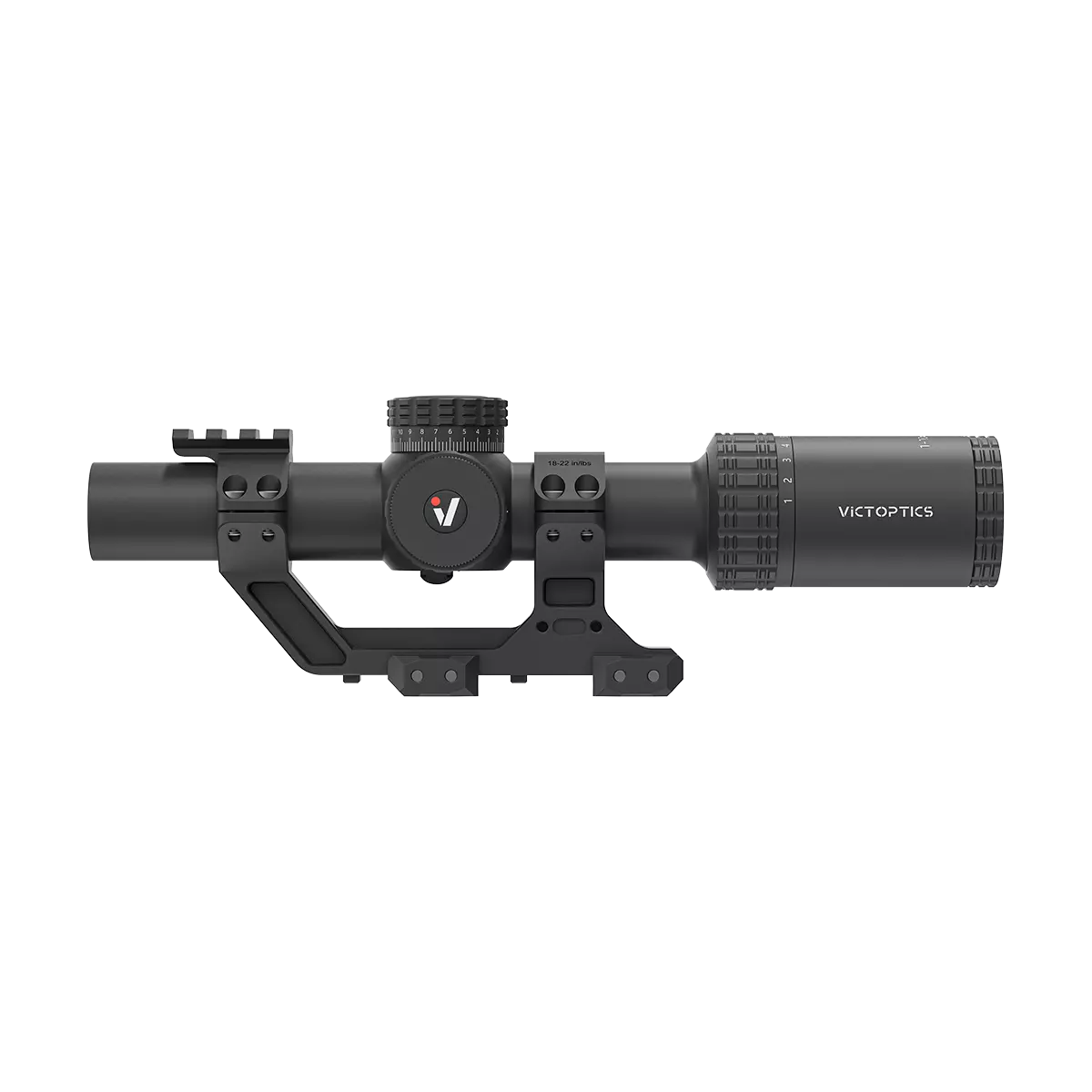

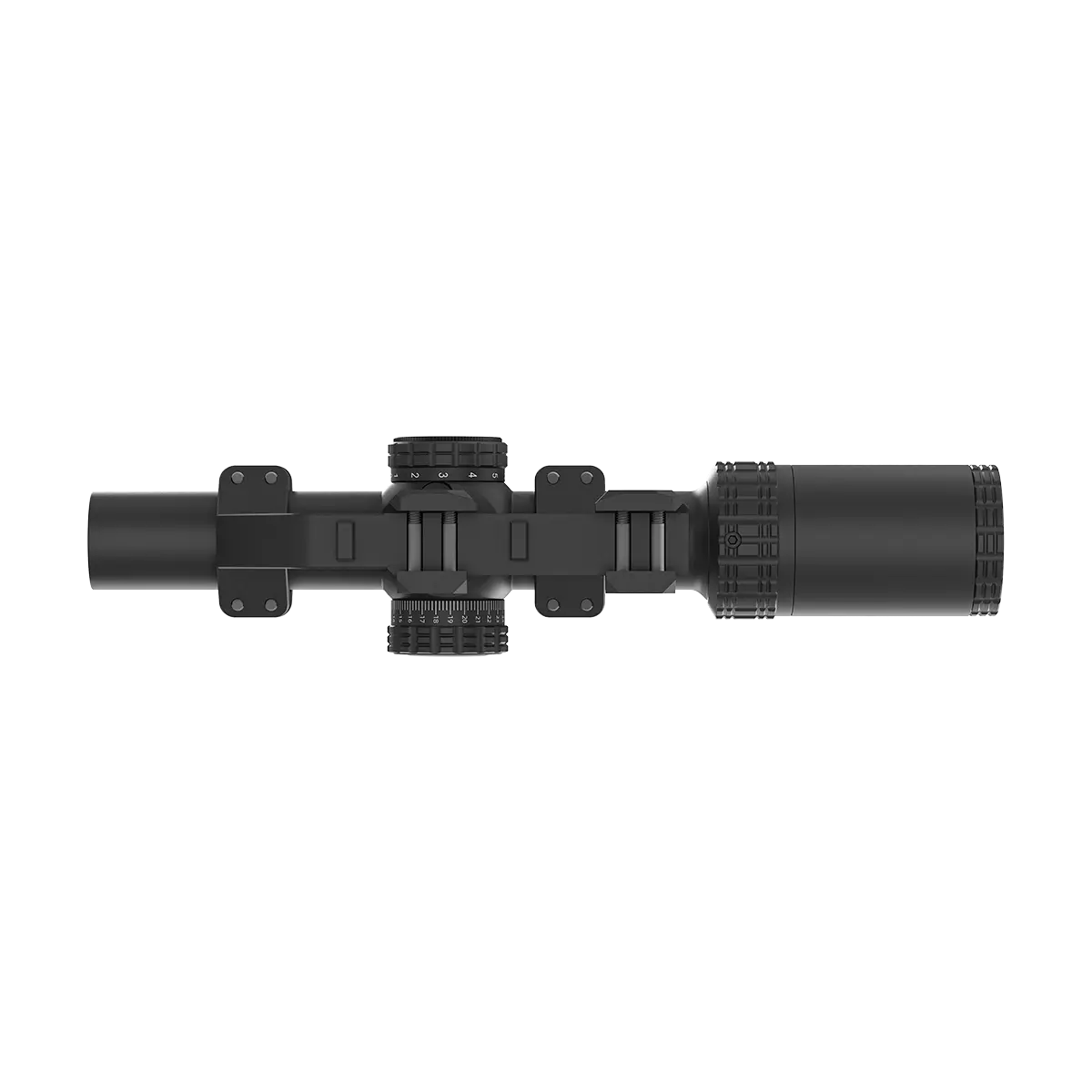

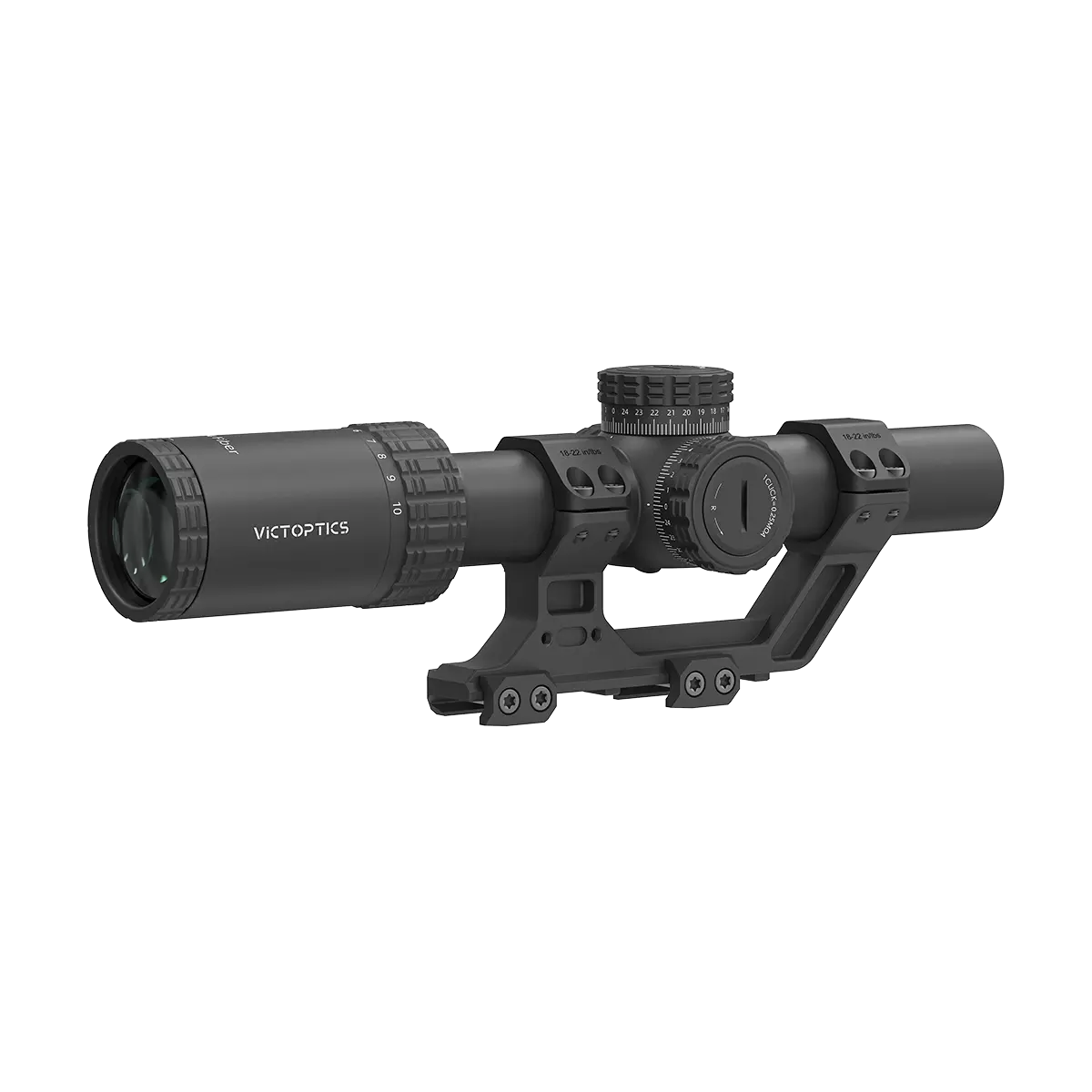

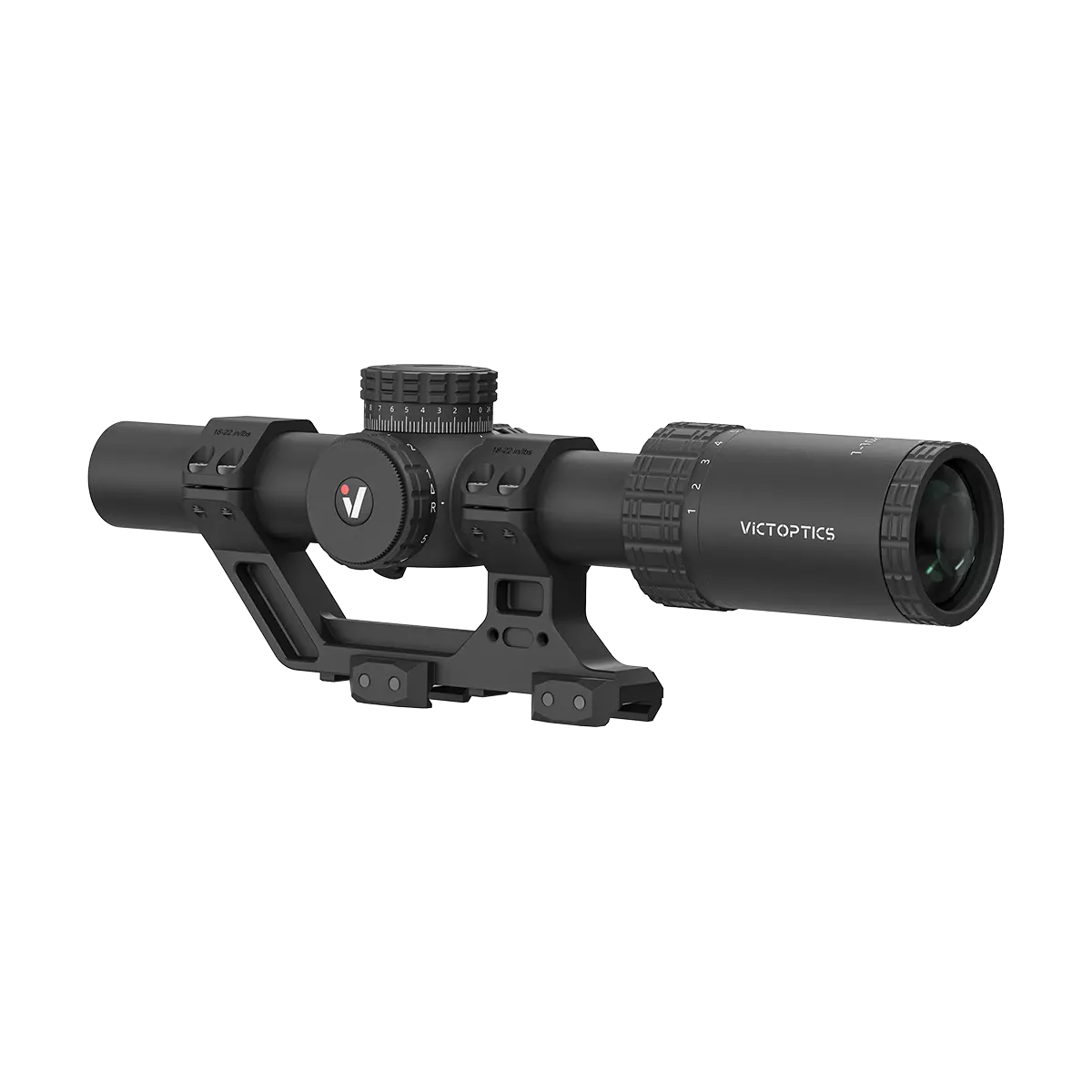

AR-Optimized LPVO Kit

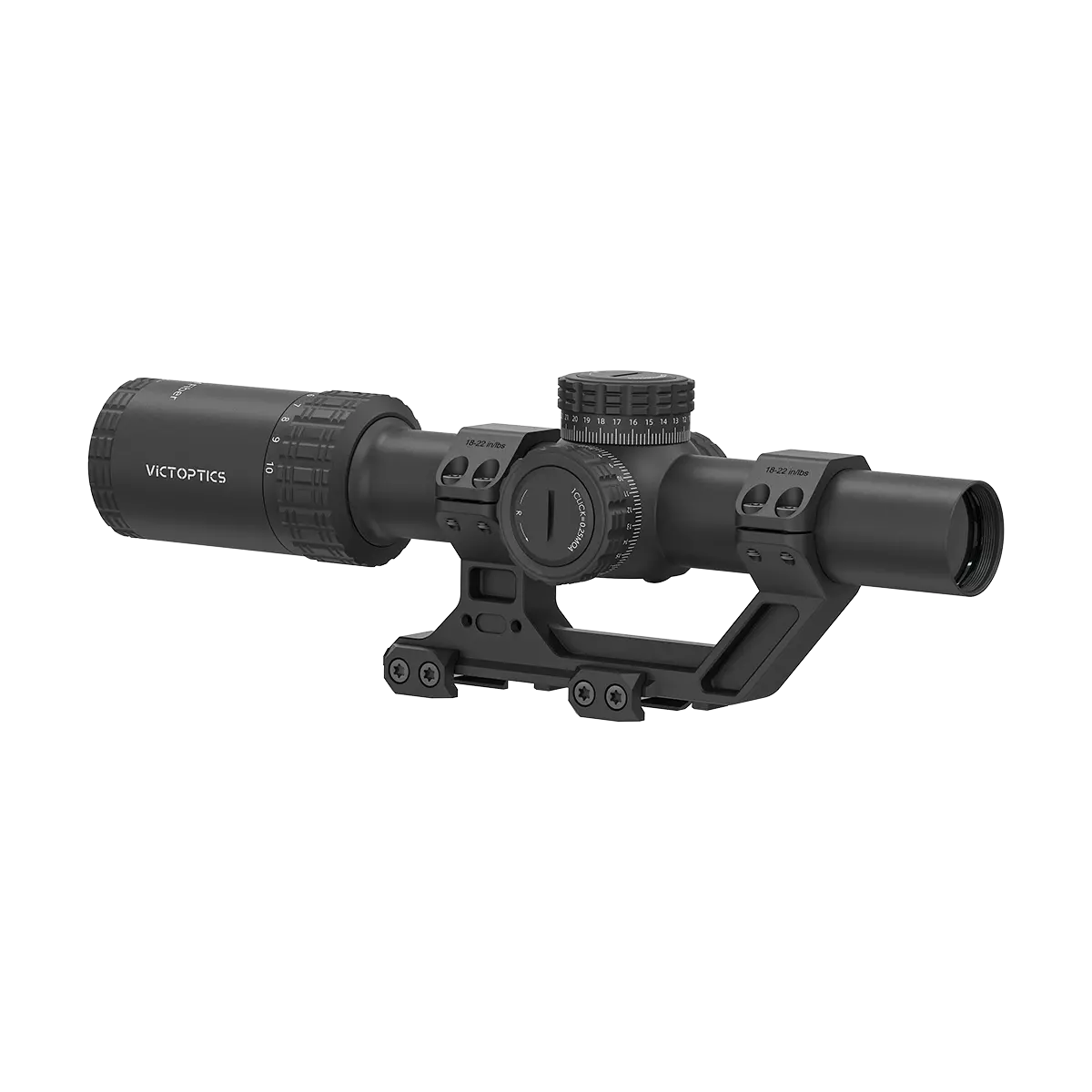

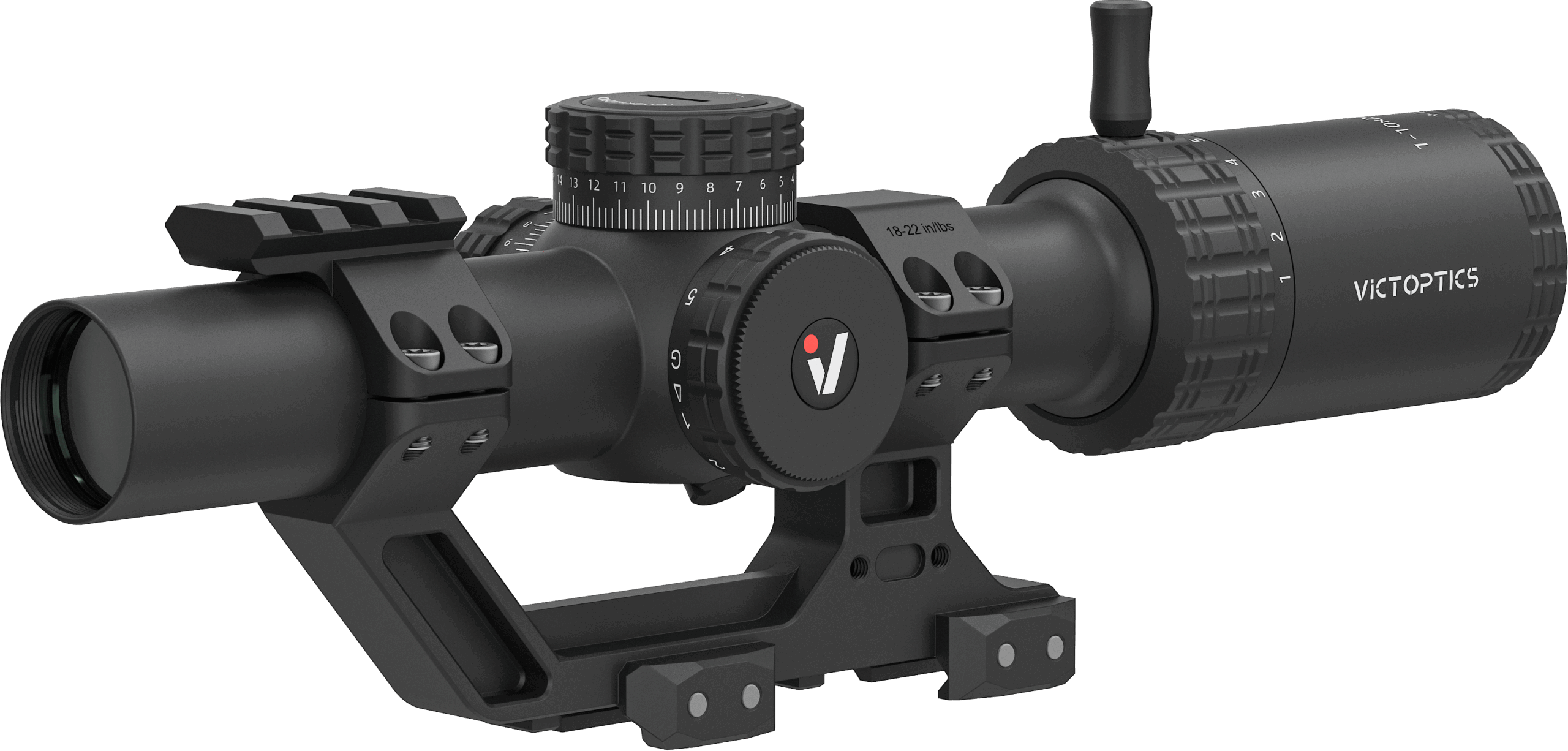

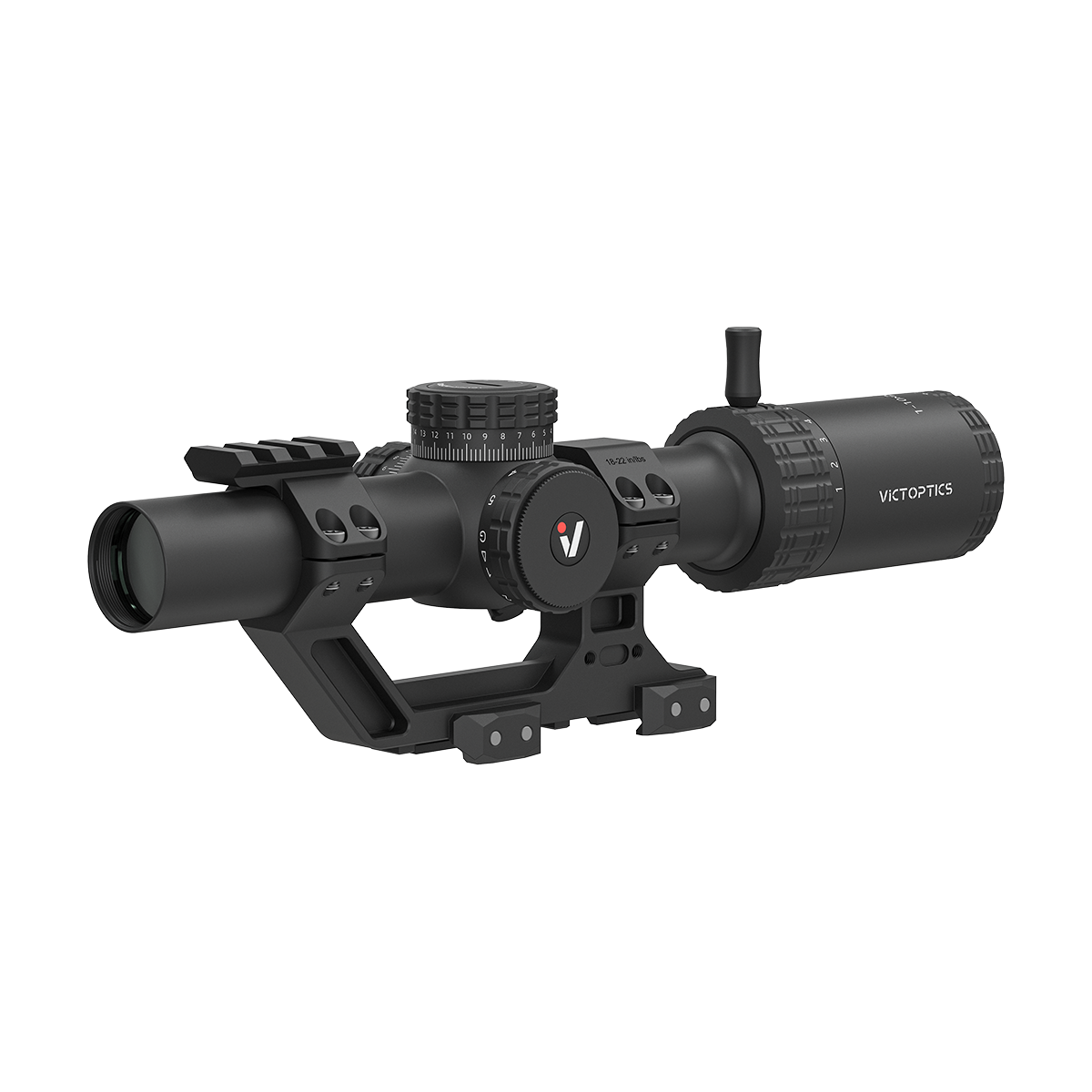

Complete setup includes the S10 1-10×24i LPVO SFP scope and 1-piece Picatinny mount (1.93 in / 49 mm center height), designed for ideal AR shooting alignment.

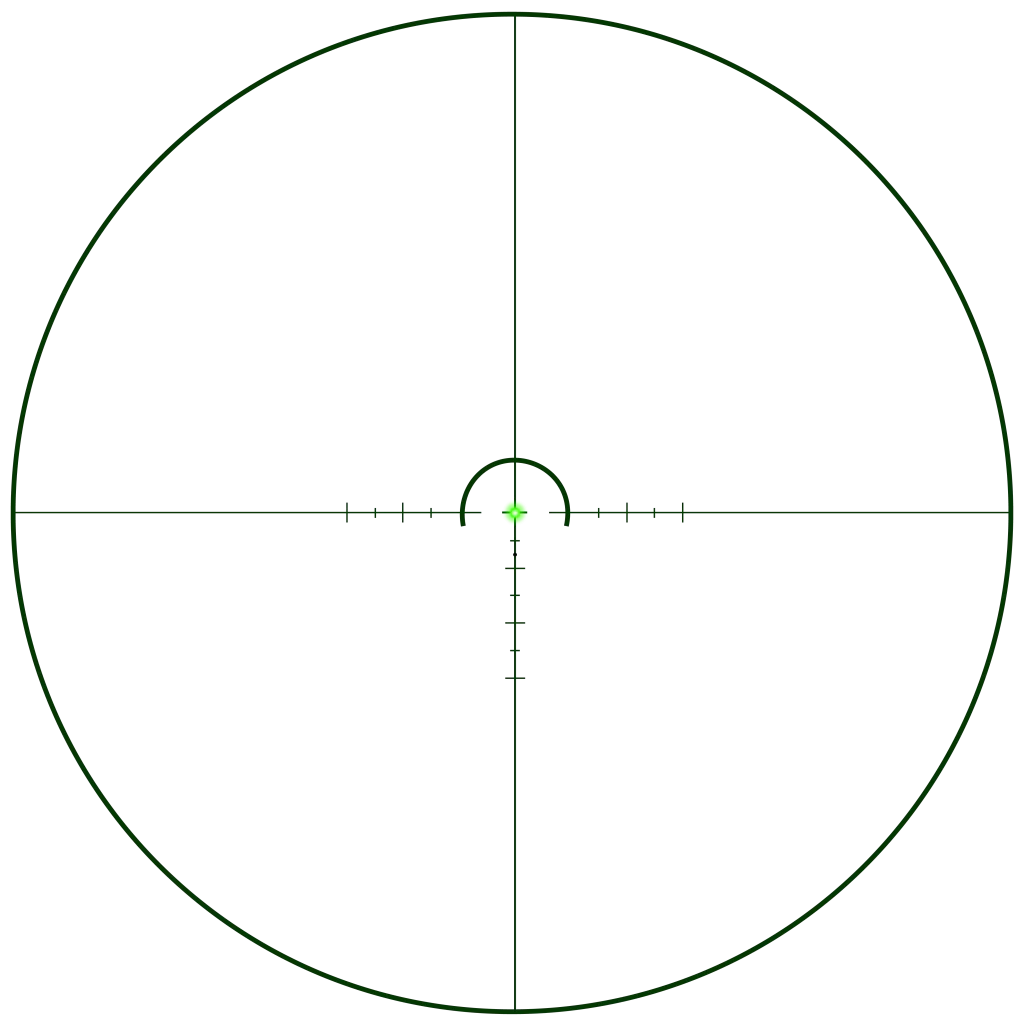

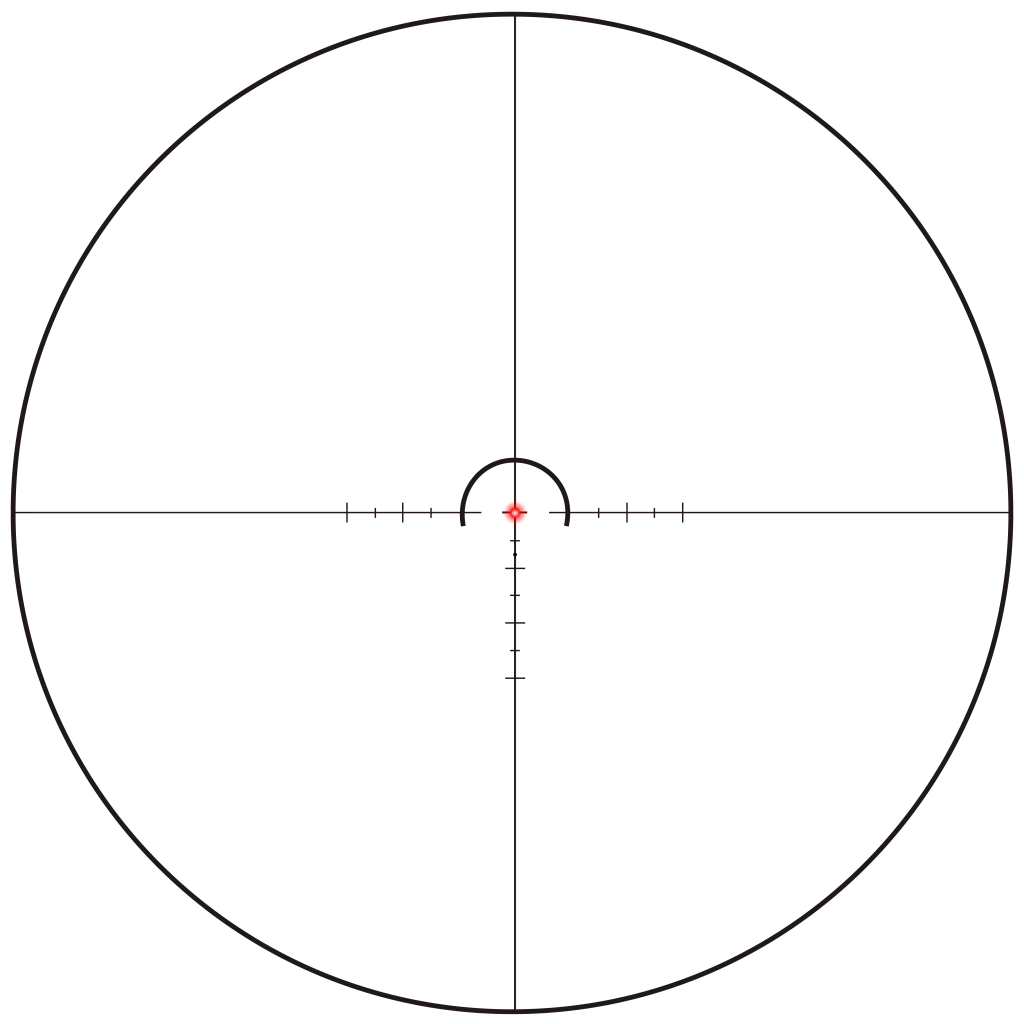

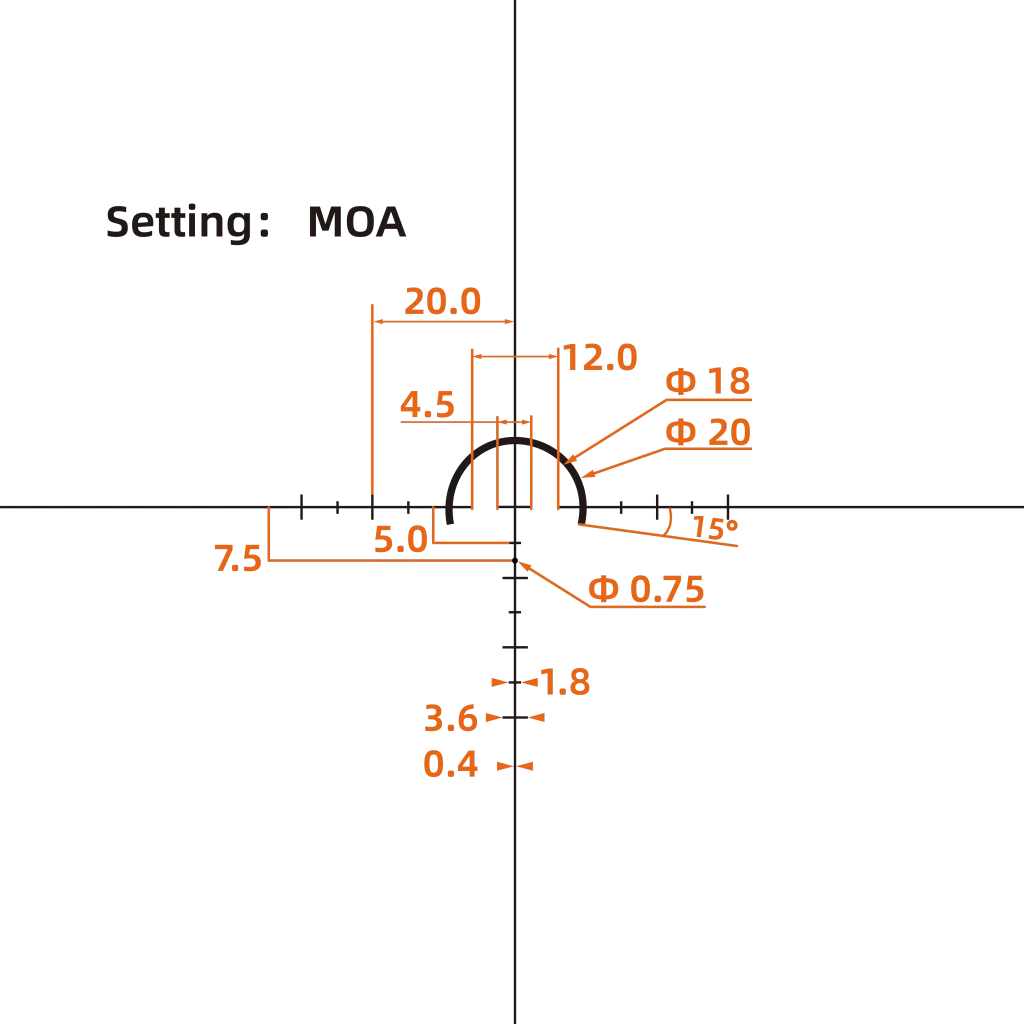

Fiber Optic Reticle for Clear Aiming in Bright Light

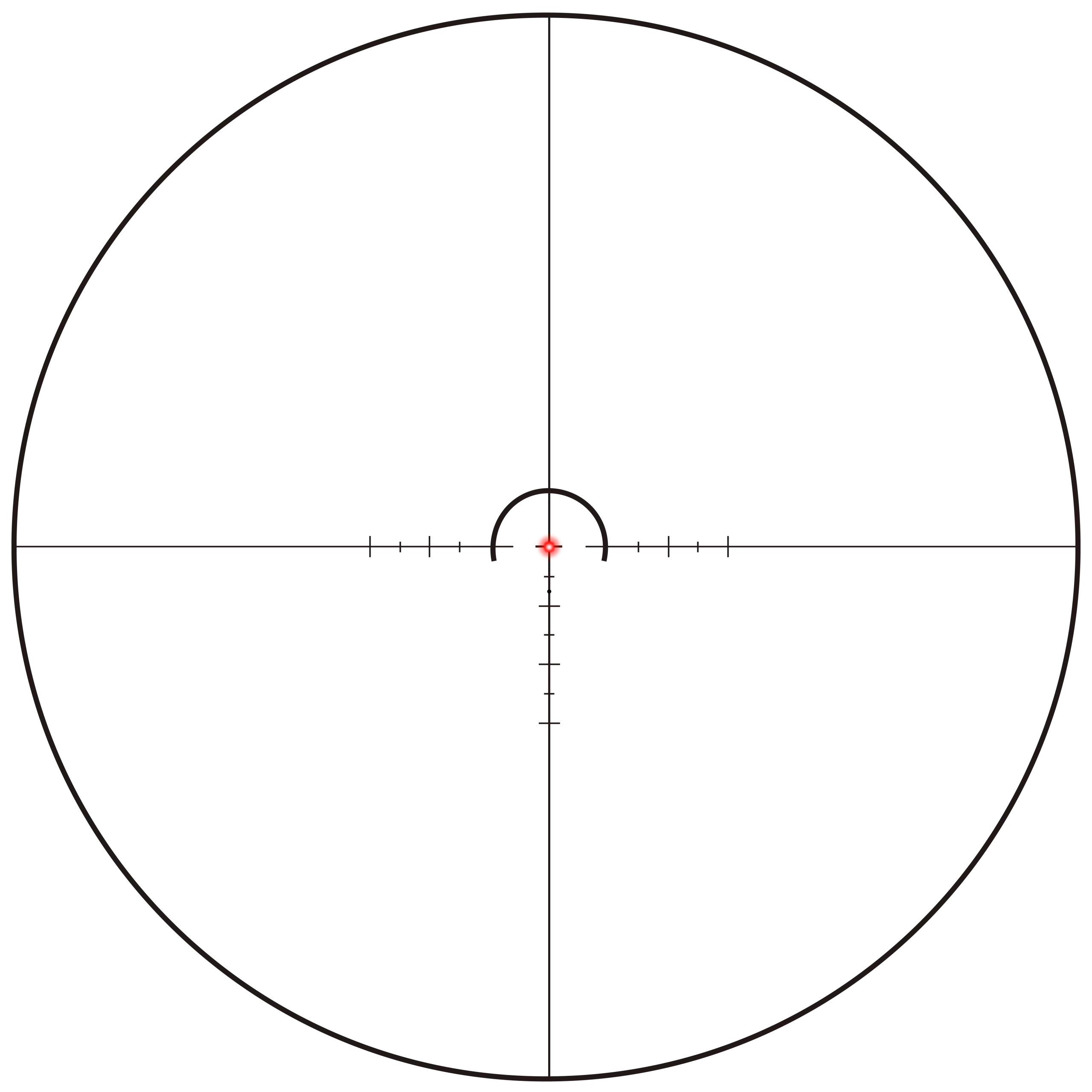

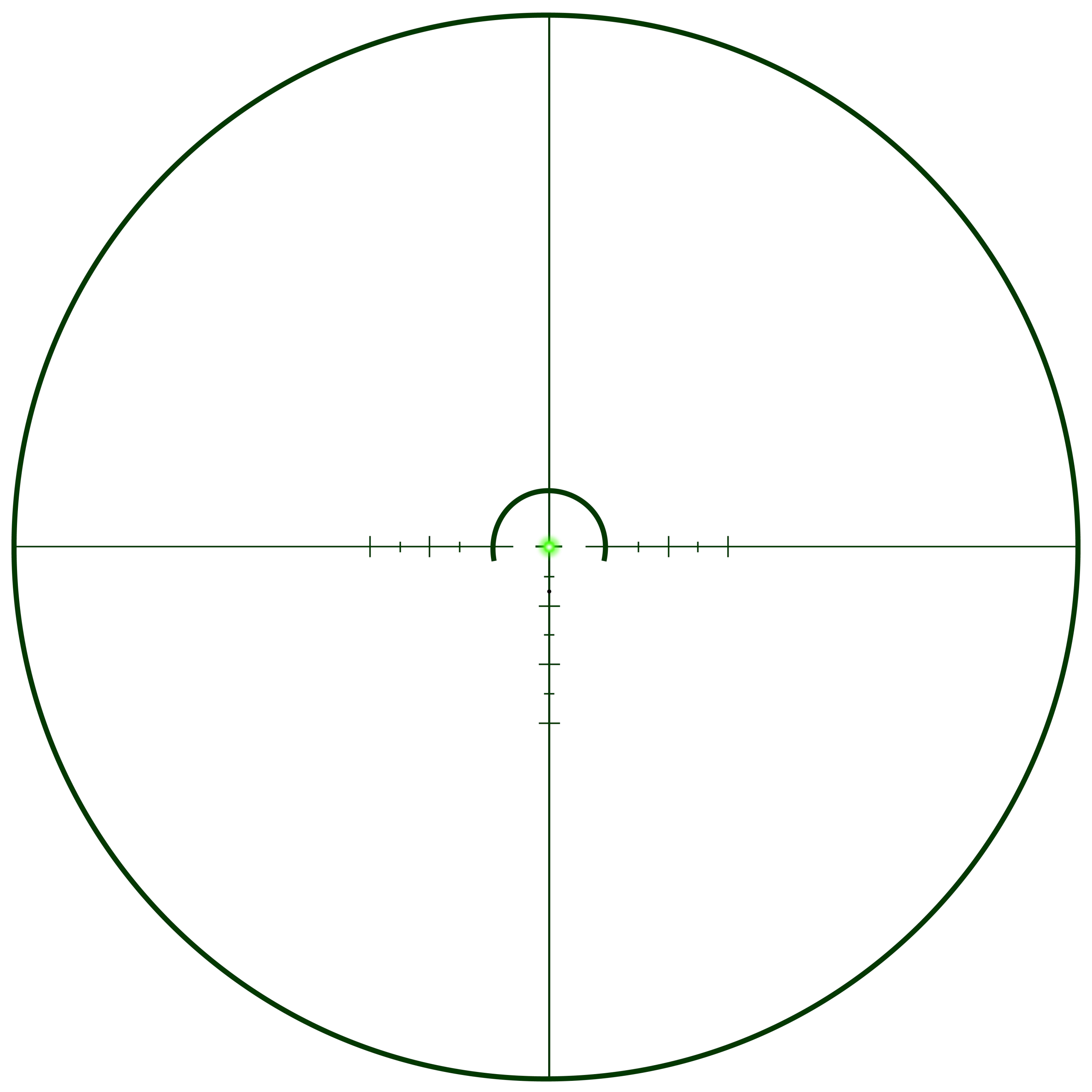

The VS10-2 MOA fiber dot reticle 1-10x LPVO delivers a clear, bright center dot, ensuring precise targeting during daytime shooting. Even in strong or reflective light conditions, the illuminated dot remains vividly visible, ensuring precise target acquisition.
Bright & Clear LPVO Optics
Fully multi-coated lens system provides bright, crisp imaging and true edge-to-edge clarity for rapid target acquisition.
Flexible 1-10x Zoom for Rapid Close-to-Mid Transitions
True 1x magnification allows for both-eyes-open shooting, which can be faster and more intuitive than traditional iron sights. With its versatile 1-10x power, this 1-10x LPVO scope lets shooters quickly adapt between close-range speed and medium-range precision for various airgun shooting distances.

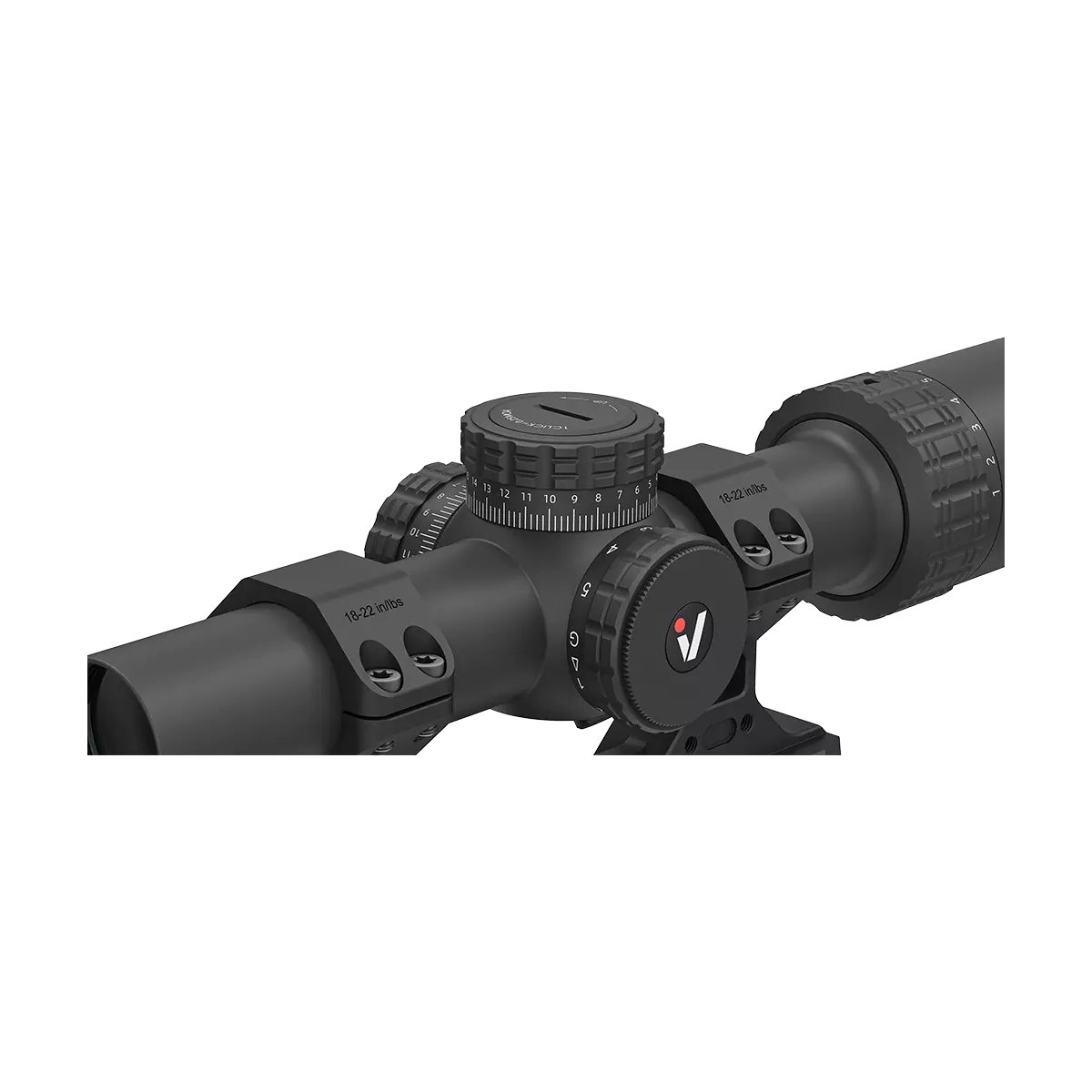

Interchangeable Ring Caps for DIY Setup
Comes with extra Picatinny-style ring caps, allowing users to customize their optic mount and add accessories for a personalized AR build.
Specification
Optical Parameter
| Magnification | 1-10x |
| Objective Lens Dia | 24 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 101 mm / 4.0 in |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 37-3.7 m @ 100 meters |
| Angular Field of View | 21.2-2.1 ° |

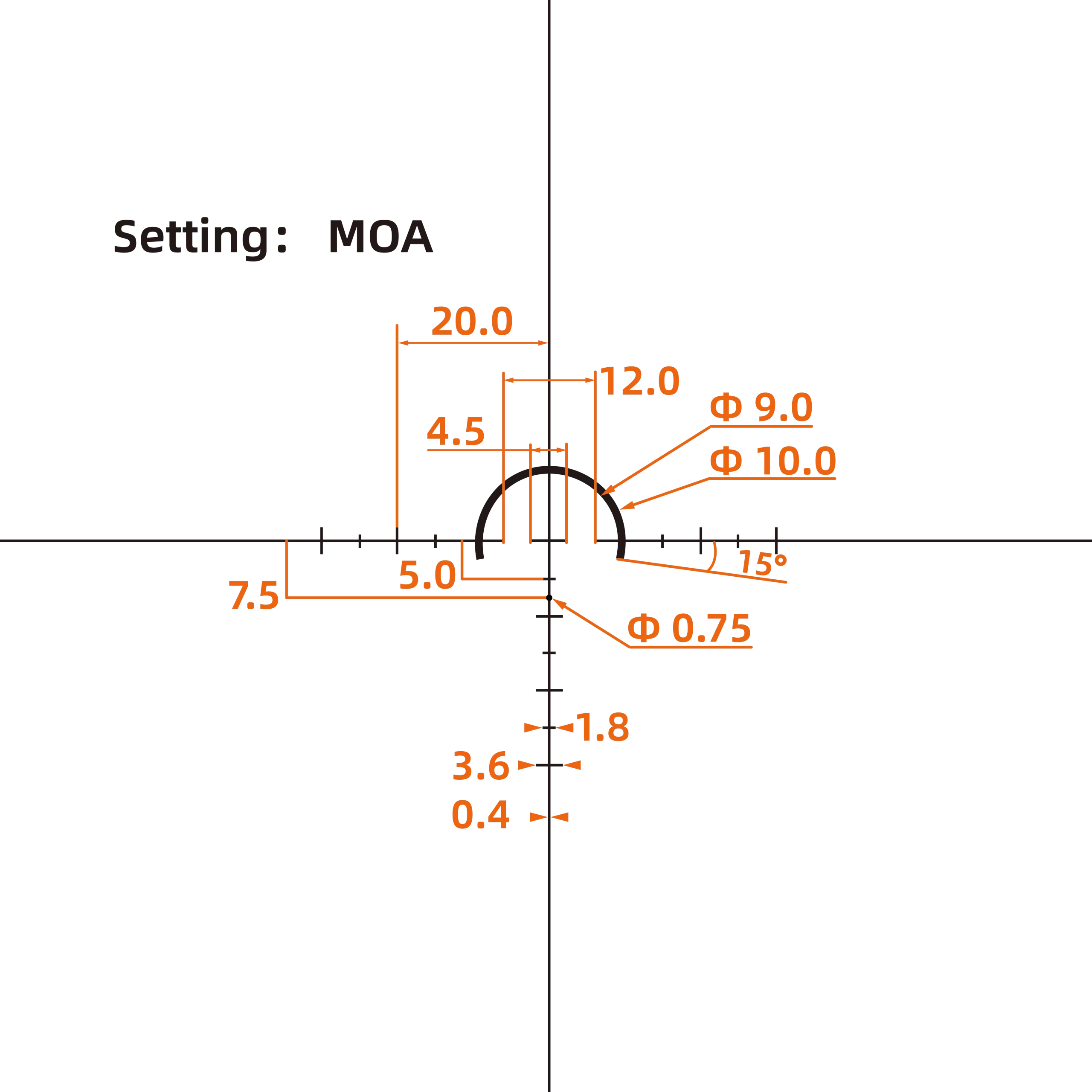

| Reticle | VS10-2 MOA |
Mechanical Parameter
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/4 MOA |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | >120 MOA |
| Windage Adjustment Range | >120 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination | 5 Gears Red and Green Illumination, On/off Switch |
| Battery Type | CR2032 |
| Waterproof | IPX5 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 274.0 mm / 10.79 in |
| Weight (Net) | 597 g / 21.1 oz |

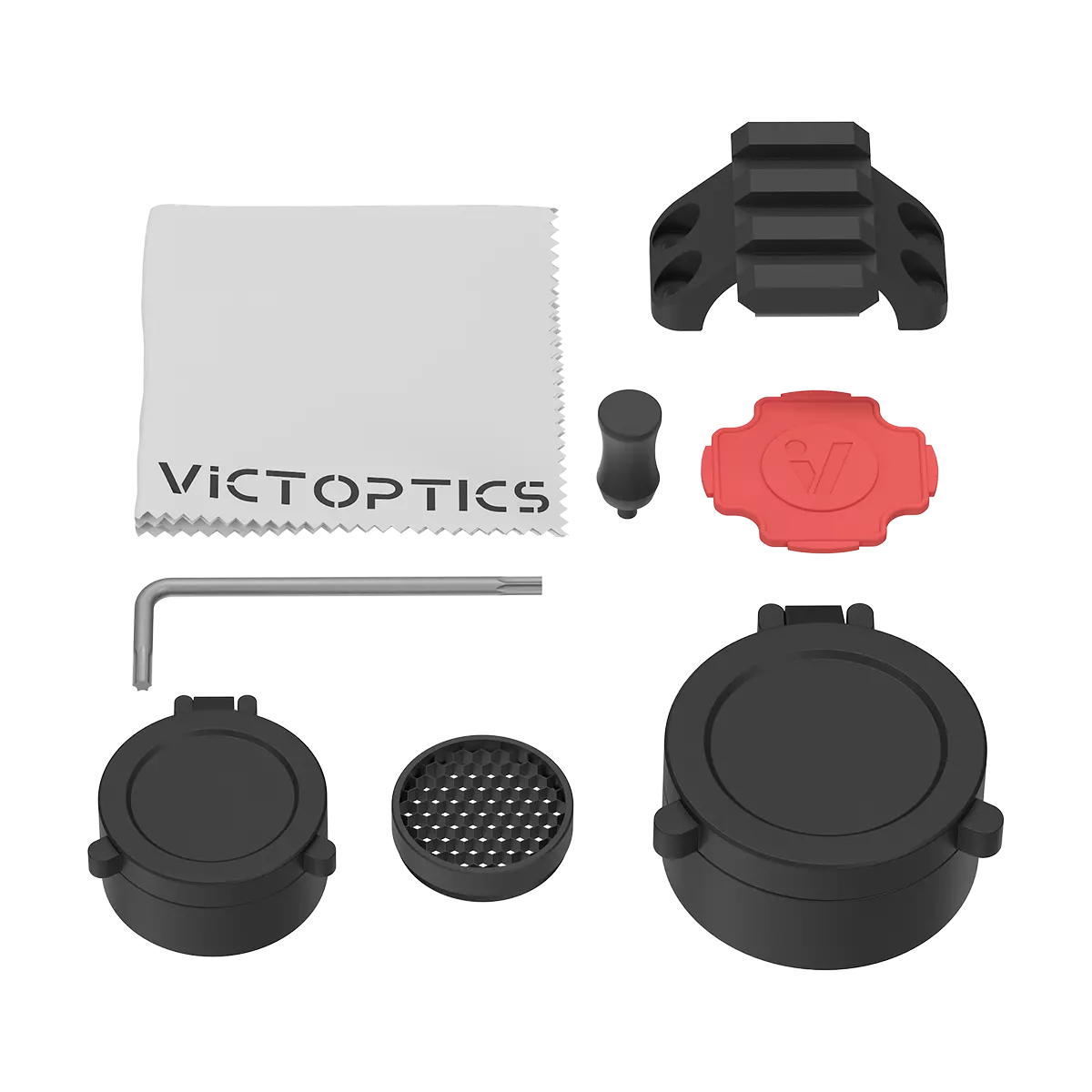

| Items in the Package (Complete Kit) |
honeycomb sunshade, extra Picatinny-style ring caps, hex key, plastic wrench, power throw lever, flip-up caps, cleaning cloth, etc. |
Picatinny AR Mount Parameter
| Ring Dia | 30 mm |
| Height | 72 mm / 2.83 in |
| Center Height | 49 mm / 1.93 in (Bottom to Center) |
| Length | 140 mm / 5.51 in |
| Materia | 6061-T6 Aluminum Alloy |
| Weight | 161 g / 5.68 oz |
| Mount | Picatinny |
| Finish | Matte Black |
Features
· A Kit Includes S10 1-10×24i LPVO SFP Scope & 1-Piece Picatinny Mount, w/ 1.93 in (49 mm) Center Height for AR Shooting Position
· Fiber Optic Reticle w/ Bright Center Dot for Clear Aiming in Bright Light, Ensuring Precise Targeting During Daytime Shooting
· Extensive Elevation Range of over 120 MOA w/ Precise 1/4 MOA Click Value, Supports Flexible Zeroing Across Different Setups
· Fully Multi-Coated Lens Delivers Bright, Crisp Imaging with Consistent Edge-to-Edge Clarity Across the Entire Field of View
· Comes with an Extra Interchangeable Ring Cap, Offering More Options for DIY Customization and a Personalized Mounting Style
