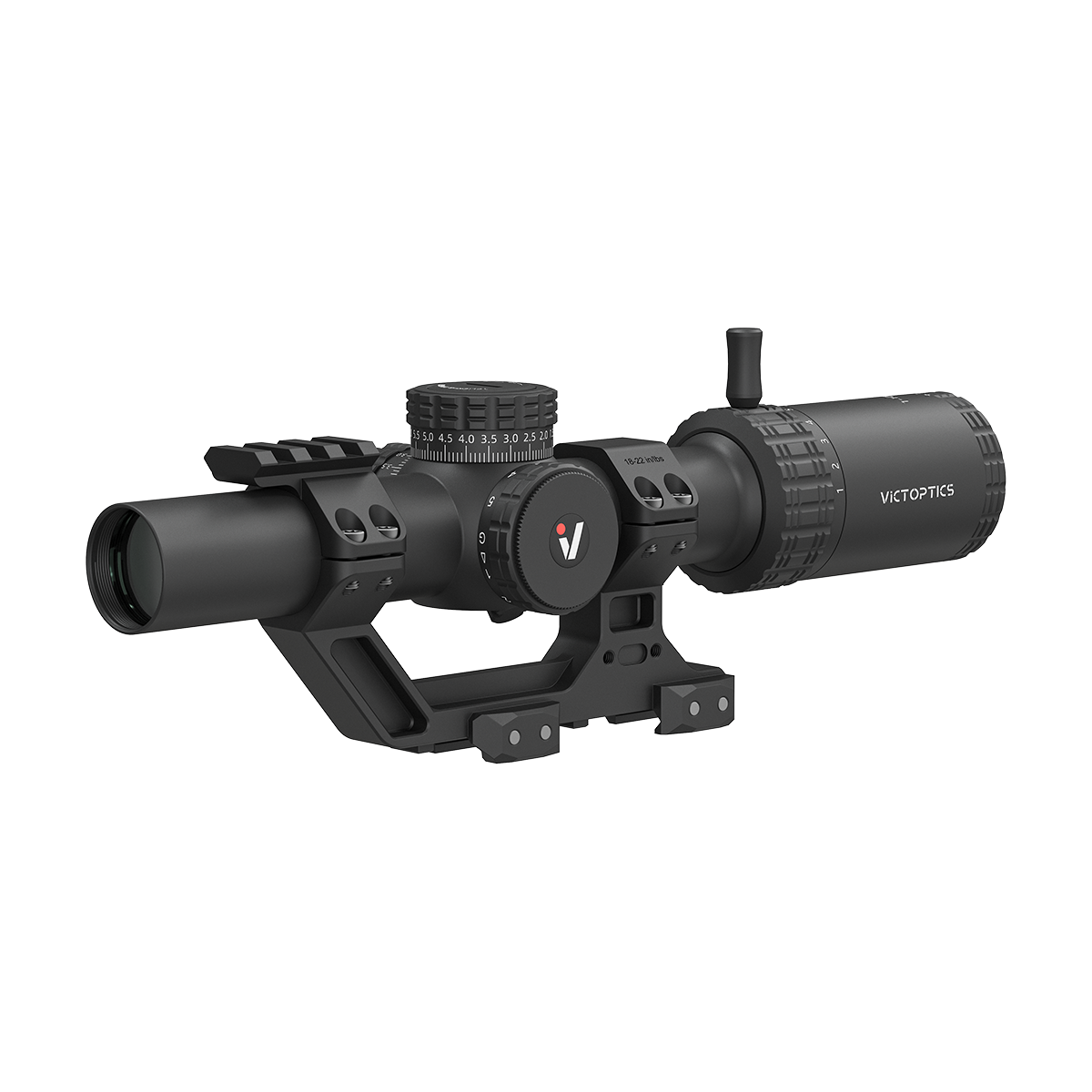

S10 1-10×24 LPVO SFP Rifle Scope w/ 1-Piece Extreme High Picatinny AR Mount Kit (SKU: OPSL137)
SKU: OPSL137(Inc VAT)
Why Is the VictOptics S10 1-10×24 SFP LPVO a Great Choice for AR-Platform Shooting?
30mm Tube Size
Edge-to-Edge crystal image
FMC optic coating tech
5 settings red & green
Second Focal Plane
True 1x Power
Pull to adjust, press to lock
750G Shockproof

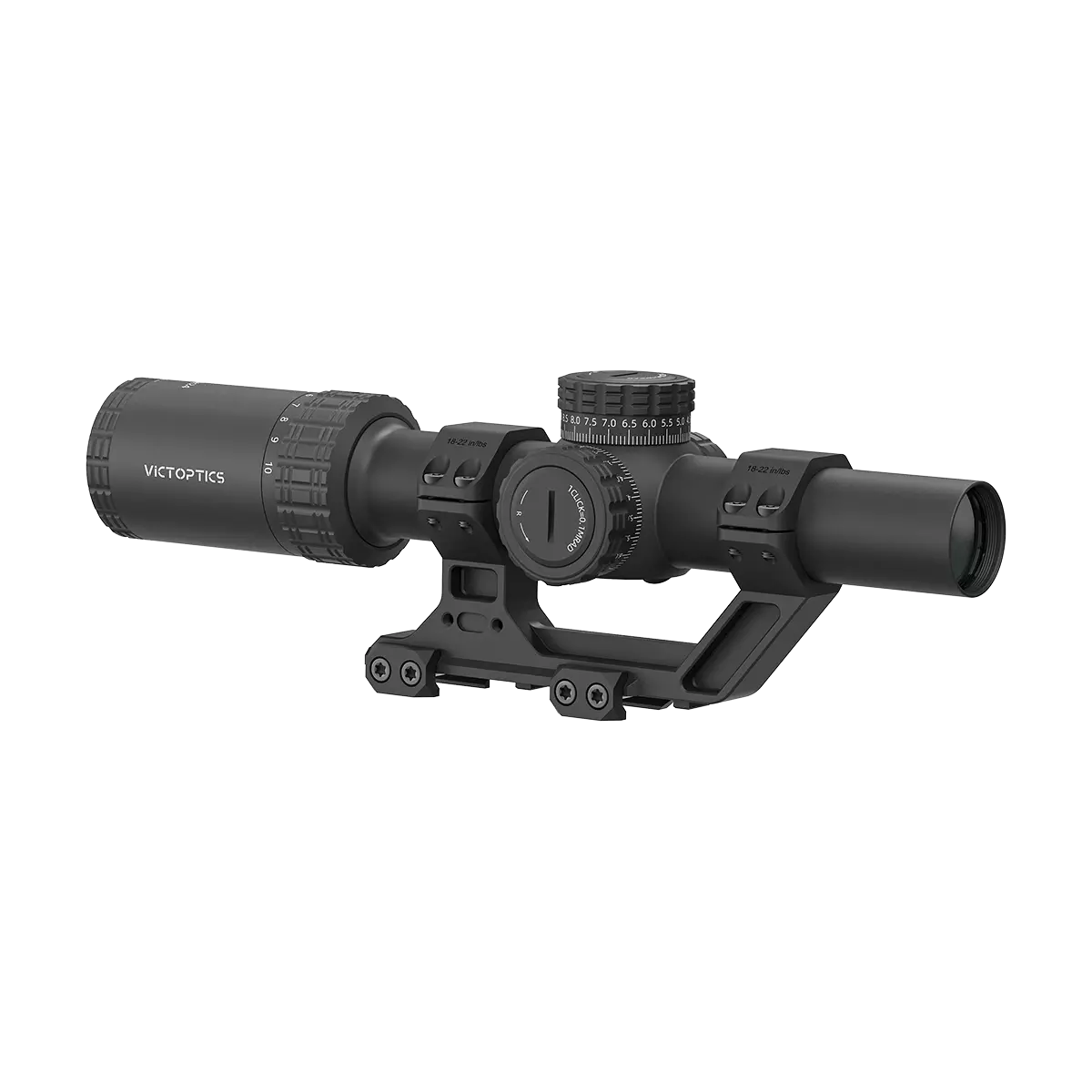

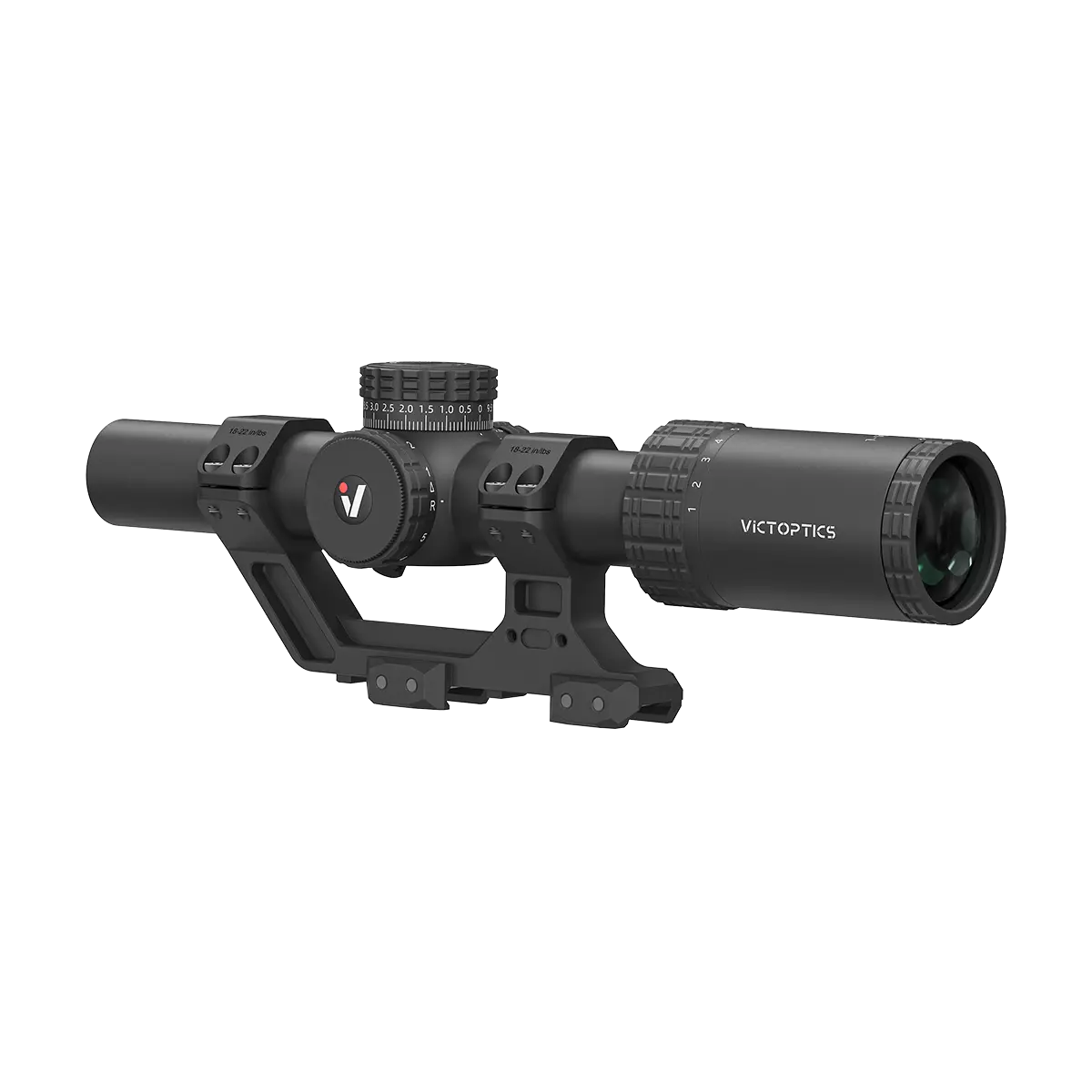

AR-Optimized LPVO Kit

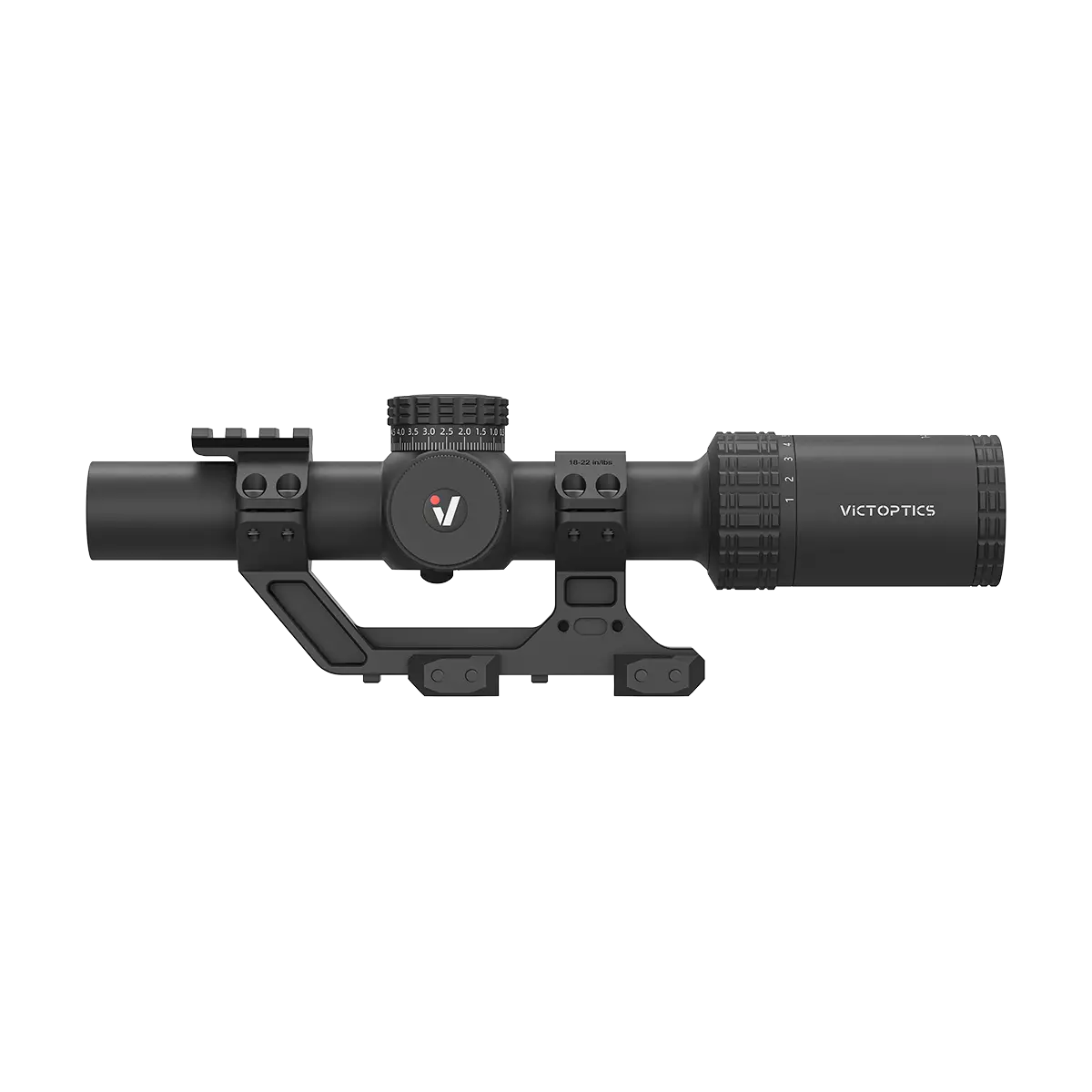

Includes the S10 1-10×24 SFP LPVO Rifle Scope with a 1-Piece Picatinny Scope Mount at 1.93 in / 49 mm Center Height, offering a natural sight picture and comfortable shooting alignment for AR-15 rifles and other AR platforms.
Fast Follow-Up Corrections
The VS 10-1 MIL SFP Reticle uses a detailed Christmas Tree pattern with practical MIL holdover, elevation, and windage references, while5-level red and green illumination enhances reticle visibility for quick target acquisition, fast aiming, holdover adjustments, and follow-up shots throughout the 1-10× LPVO magnification range, from bright daylight to low-light shooting conditions.
Bright & Clear LPVO Optics
Fully Multi-Coated Lenses enhance light transmission and image contrast to deliver bright, sharp, color-true views with excellent edge-to-edge resolution. Fine details remain clearly defined throughout the 1-10× magnification range, giving the SFP LPVO a clean and consistent optical view from close-range scanning to detailed mid-range observation.

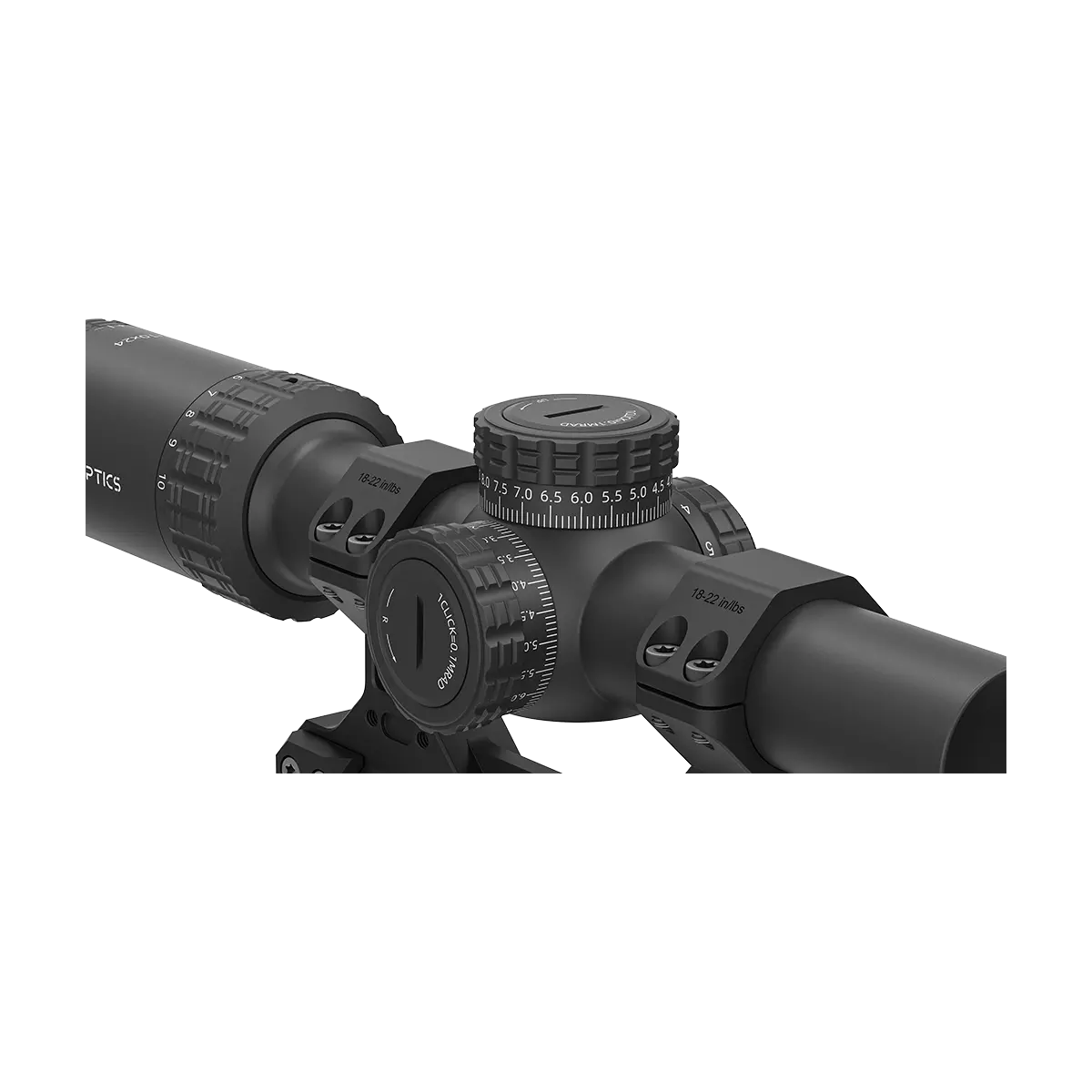

Precise MIL Adjustment Control
With a 1/10 MIL Click Value and 35 MIL Elevation Adjustment Range, the S10 LPVO offers fine control over point-of-impact corrections, zeroing, elevation compensation, and windage adjustments. Precise turret tracking helps shooters make quick, consistent changes for varying distances and shooting conditions on AR platforms and mid-to-extended-range rifle setups.
Interchangeable Ring Caps for DIY Setup
Supplied with extra Picatinny-style Ring Caps for flexible accessory mounting, giving the LPVO scope mount added versatility for attaching compatible Picatinny accessories and configuring a more streamlined, personalized AR rifle setup.

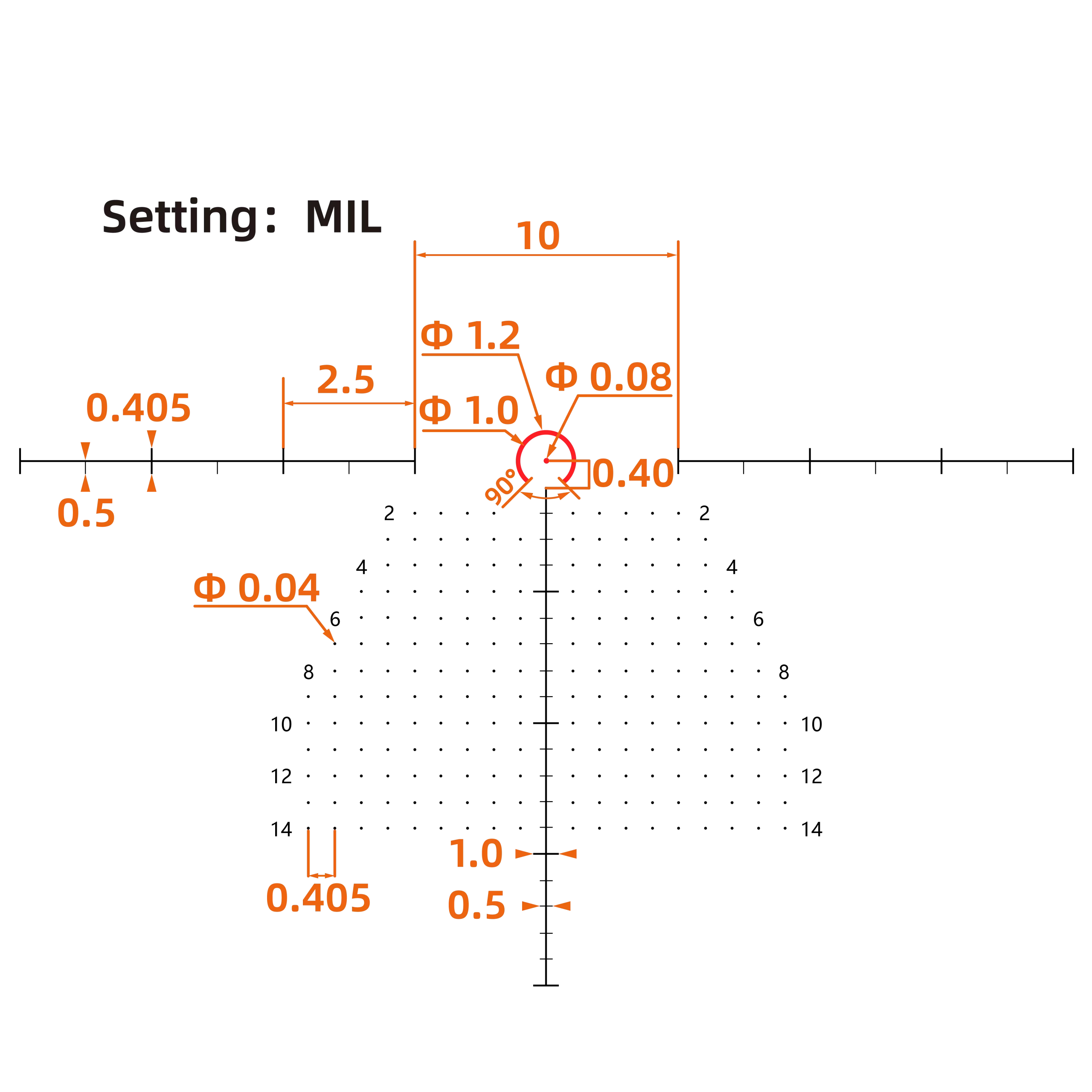

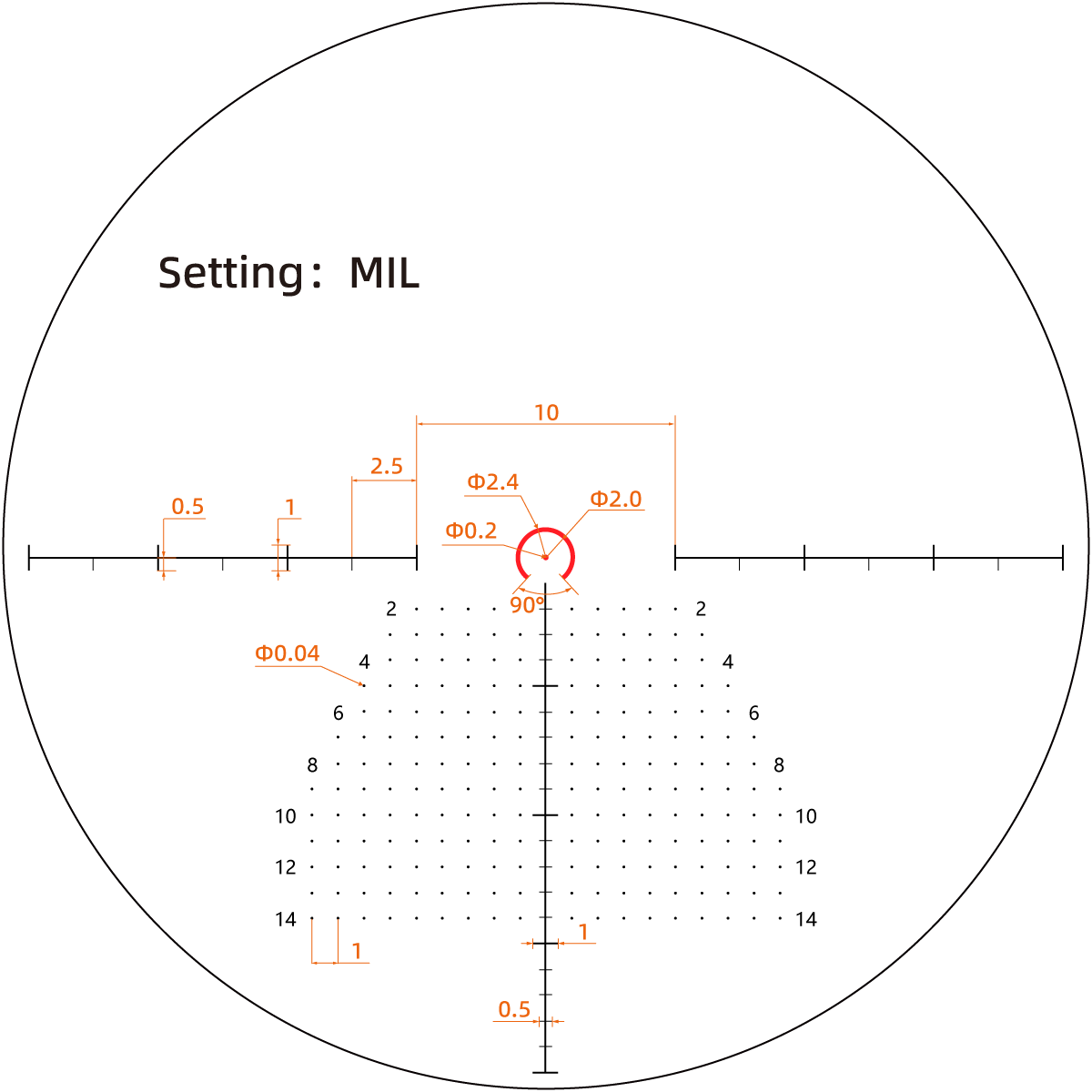

Reticle (VS 10-1 MIL)
Dimension
Specification
S10 1-10x LPVO SFP Best Budget Rifle Scope
- Magnification: 1-10x
- Objective Lens Dia: 24 mm
- Focal Plane: Second Focal Plane
- Eye Relief: 101 mm / 4.0 in
- Lens Coating: Fully multi-coated
- Linear Field of View @ 100 yd: 111-11.1 ft @ 100 yards
- Linear Field of View @ 100 m: 37-3.7 m @ 100 meters
- Angular Field of View: 21.7-2.1 °
- Reticle: VS 10-1 MIL.
- Tube Dia: 30 mm
- Parallax Setting: 100 yards
- Click Value: 1/10 MIL
- Turret Function: Turret Lock
- Elevation Adjustment Range: >35 MIL
- Windage Adjustment Range: >35 MIL
- Diopter Compensation: -2 to +2
- Illumination: 5 Gears, Green & Red, On/off Switch
- Battery Type: CR2032
- Waterproof: IPX5
- Fogproof: Nitrogen Filled
- Shockproof: 750 G
- Housing Material: 6061-T6 Aluminum Alloy
- Finish: Matte Black
- Length: 274.0 mm / 10.79 in
- Weight (Net): 588 g / 20.7 oz

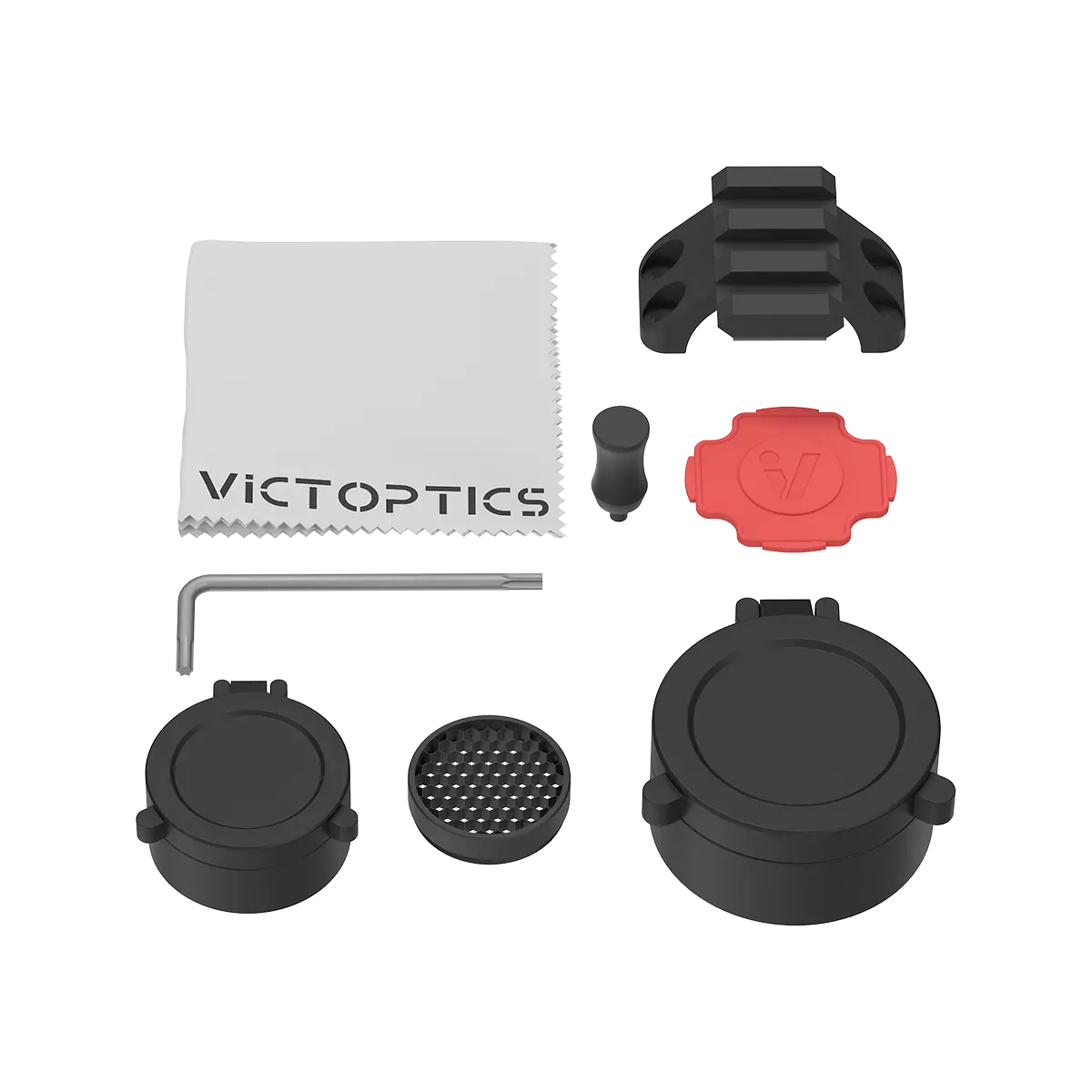

- Items in the Package (Complete Kit): honeycomb sunshade, extra Picatinny-style ring caps, T15 torx wrench, plastic wrench, power throw lever, flip-up caps, cleaning cloth, etc.
30mm 1-Piece Extreme High Picatinny AR Mount
- Ring Dia: 30 mm
- Height: 72 mm / 2.83 in
- Center Height: 49 mm / 1.93 in (Bottom to Center)
- Length: 140 mm / 5.51 in
- Material: 6061-T6 Aluminum Alloy
- Weight: 161 g / 5.68 oz
- Mount: Picatinny
- Finish: Matte Black
Instruction Manual
Features
- VS 10-1 MIL Christmas Tree Reticle with 5-Level Red & Green Illumination delivers clear holdover references in changing light
- Fully Multi-Coated Lenses provide bright, crisp images with excellent edge-to-edge clarity and fine detail
- 1/10 MIL Clicks and 35 MIL Elevation Adjustment offer precise, repeatable control for distance-based corrections
- Includes the S10 1-10×24 SFP LPVO and 1-Piece Picatinny Mount with a 1.93 in / 49 mm Center Height for a natural AR shooting position
- Extra Interchangeable Ring Cap expands Picatinny accessory mounting options for flexible DIY customization
Service
Scope Insights & Guides
Build your understanding of rifle scopes step by step, from basic setup and key components to optical performance and precision adjustments.
Learn the essential steps to zero your scope for consistent accuracy.
Understand how different tube sizes affect mounting, adjustment range, and performance.
Discover how eye box affects sight picture, viewing comfort, and target acquisition.
Explore how fiber-optic reticles improve aiming-point visibility and target acquisition.
Understand how elevation, windage, locking, and zero-stop turret systems work.
Learn how MOA and MIL click values translate scope adjustments into point-of-impact changes.
FAQ
❓What advantage does the 1-10× magnification range provide?
The broad 1-10× range combines a true low-power field of view for close-range shooting with higher magnification for target observation and more deliberate shots at extended distances.
❓When should the red or green reticle illumination be used?
The 5-level red and green illumination can be selected according to the shooting environment, helping maintain reticle visibility against different backgrounds and lighting conditions.
❓What does the fully multi-coated optical system contribute to the S10?
The fully multi-coated lenses improve light transmission and contrast while maintaining a bright, crisp sight picture with consistent clarity across the field of view.
❓How much adjustment range is available for zeroing and trajectory correction?
The S10 provides 1/10 MIL click adjustments with a 35 MIL elevation range, offering fine control for zeroing and distance-specific point-of-impact corrections.
